U100 & U150 Integrated Cold & Warm Isostatic Press

Touch screen + membrane switch (servo control system)

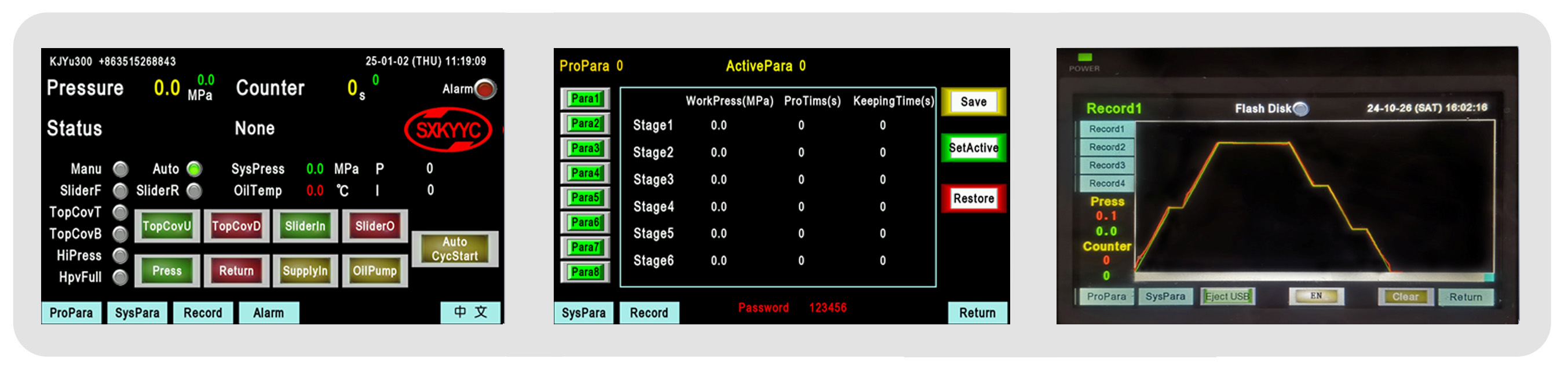

1. Adopt the touch screen of OMRON company, the system will make an immediate response after your figures touch the button on the screen.

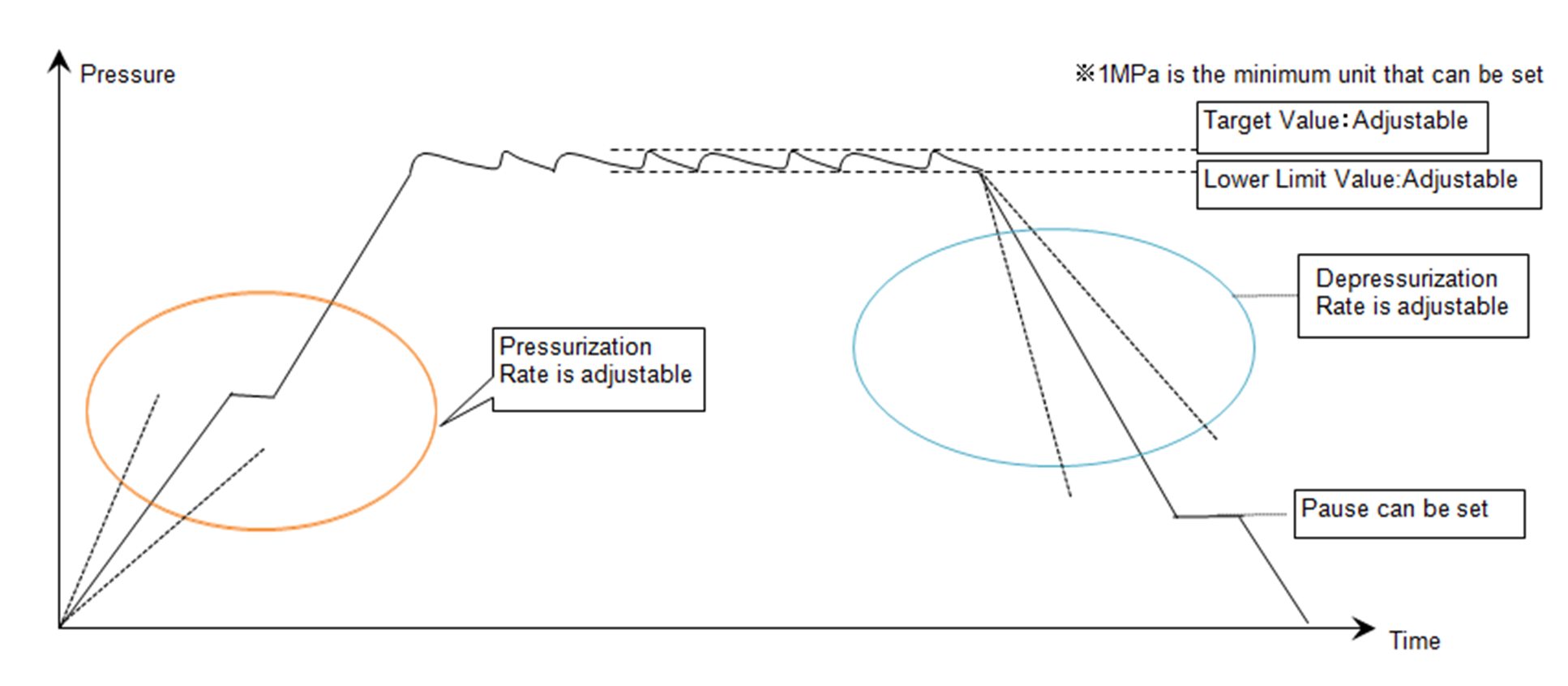

2. Friendly human-computer interface, which is easy to set the pressurization and depressurization speeds.

3. It has powerful data recording and display functions, and dynamically displays pressure change curves in real time.

4. The membrane switch is attached to the surface of the control cabinet, and its graphical design makes it easy to be understood.

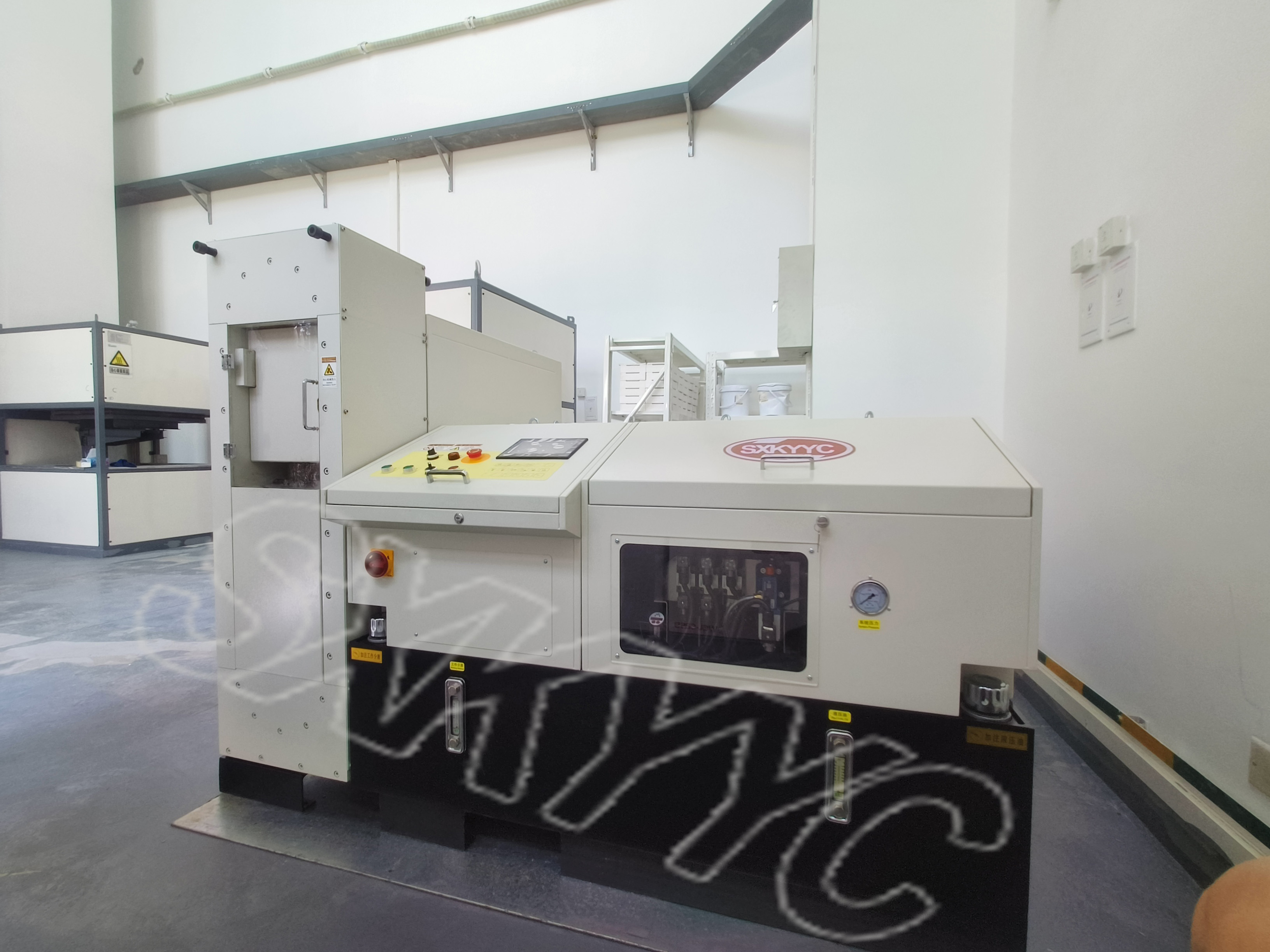

The entire equipment adopts a thickened sheet metal shell fully wrapped design, and all high-voltage components are installed inside the equipment. There are multiple security protection settings to ensure the safety production of the pressing machine

1. Manual pressure relief valve. In case of any emergency or failure, open the valve manually to enable the pressure relief protection, and the pressure can be increased again after closing it.

2. The hydraulic system has a preset pressure value, beyond which the relief valve automatically overflows

3. Pressure sensor and electrical apparatus control system. When the working pressure exceeds the preset pressure value, the electrical apparatus control system will automatically stop the operation of pressurization system.

4. The control cabinet is equipped with a shutdown button, which is used to stop the operation of the pressing machine at any working stage after pressing this button.

5. Interlock of electrical apparatus control procedures. When the pressing machine operates in strict accordance with the working procedures, if the previous procedure is not completed or with failures, the pressing machine cannot proceed to the next procedure, and will send operation failure signal. Only the failure is eliminated, can the pressing machine continue to the next procedure.
