G series 100~150mm
| Quantity: | |
|---|---|
Advantages:
The equipment features a prestressed steel-wire wound structure for its high-pressure vessel, frame, and booster, achieving a working pressure of 200MPa. This design is currently recognized as the mechanical configuration with the highest safety factor and longest service life.
Its dry bag has an inner diameter of 150mm, suitable for pressing small products, rodlikeor tube-shaped products
The loading method is external loading of the equipment. After the mold is released from the high-pressure vessel, it automatically pushes outward horizontally. The operator can remove the pressed compacts in place without moving the mold, and then reload the powder, effectively reducing labor intensity.
The working fluid inside the high-pressure vessel remains in a sealed state throughout the entire working cycle, completely eliminating the possibility of powder mixing into the working medium inside the high-pressure vessel and improving the overall reliability of the equipment. As a result, the working medium will not be taken out of the equipment, with zero loss, ensuring a clean working environment.

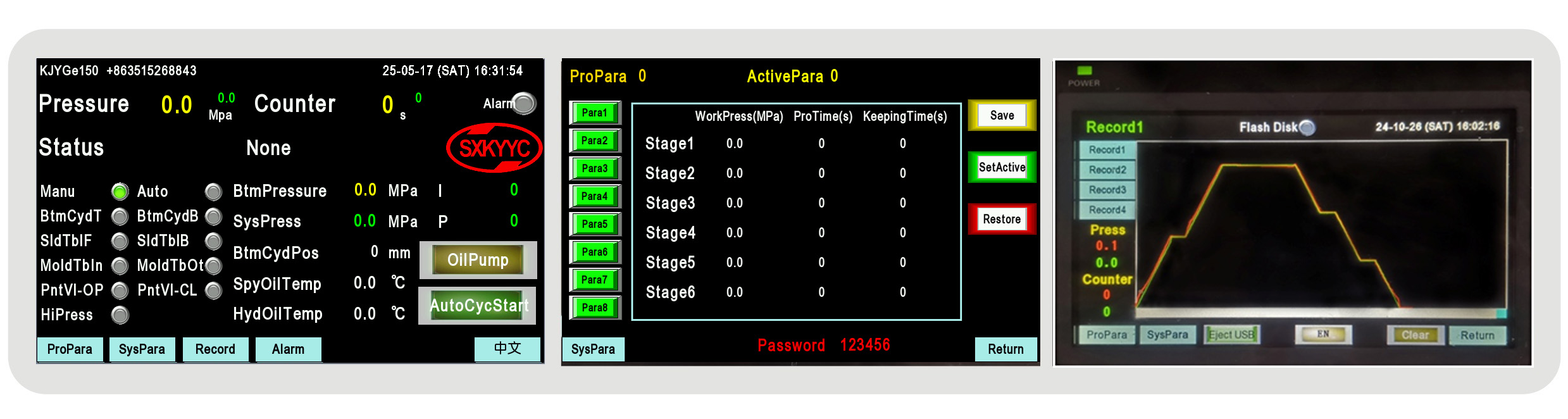

The whole machine adopts servo hydraulic system, the working process is ultra-silent, so the labor environment is optimized.
Advantages:
The equipment features a prestressed steel-wire wound structure for its high-pressure vessel, frame, and booster, achieving a working pressure of 200MPa. This design is currently recognized as the mechanical configuration with the highest safety factor and longest service life.
Its dry bag has an inner diameter of 150mm, suitable for pressing small products, rodlikeor tube-shaped products
The loading method is external loading of the equipment. After the mold is released from the high-pressure vessel, it automatically pushes outward horizontally. The operator can remove the pressed compacts in place without moving the mold, and then reload the powder, effectively reducing labor intensity.
The working fluid inside the high-pressure vessel remains in a sealed state throughout the entire working cycle, completely eliminating the possibility of powder mixing into the working medium inside the high-pressure vessel and improving the overall reliability of the equipment. As a result, the working medium will not be taken out of the equipment, with zero loss, ensuring a clean working environment.
The whole machine adopts servo hydraulic system, the working process is ultra-silent, so the labor environment is optimized.
