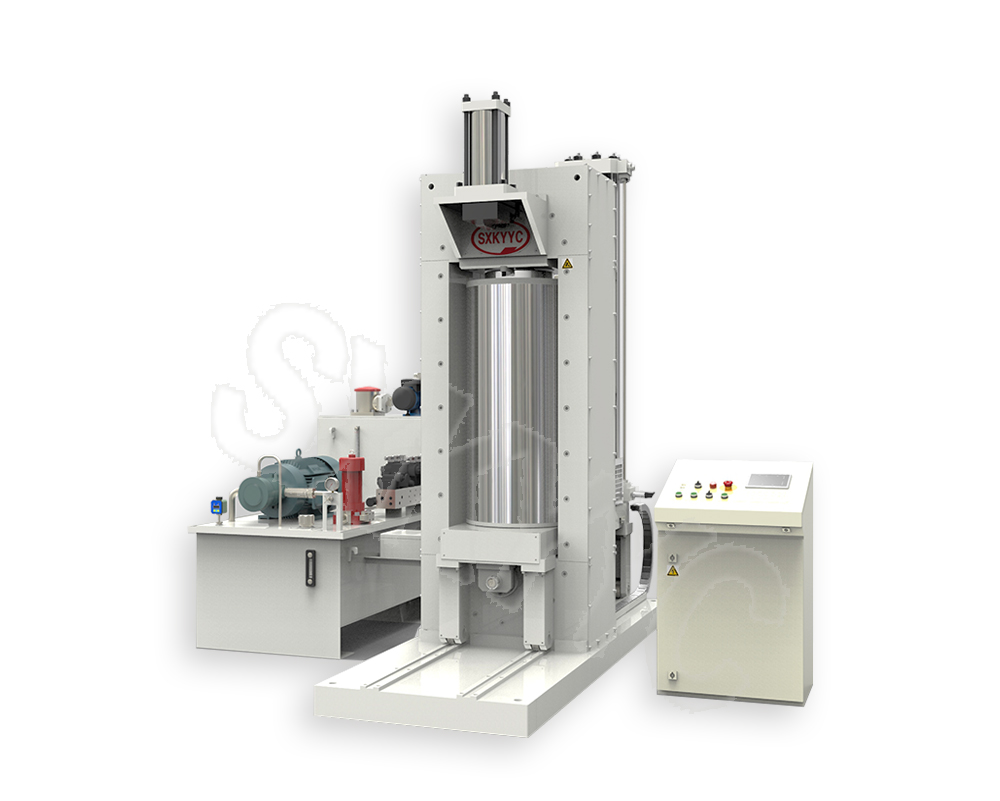

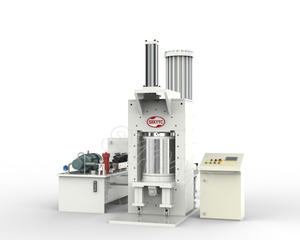

Diameter of working cavity is from 200mm to 650mm, and the depth of working cavity is from 400mm to 2000mm.
Simple structure, easy to understand, require a low technical level and comprehensive ability for using personnel and maintenance personnel.
Mature design and manufacturing technologies, high reliability in pressure rise / relief.
Generally, only two sets of superhigh pressure valves and a superhigh pressure pipeline, easy for maintenance.
Advantages:
Diameter of working cavity is from 200mm to 650mm, and the depth of working cavity is from 400mm to 2000mm.
Simple structure, easy to understand, require a low technical level and comprehensive ability for using personnel and maintenance personnel.
Mature design and manufacturing technologies, high reliability in pressure rise / relief.
Generally, only two sets of superhigh pressure valves and a superhigh pressure pipeline, easy for maintenance.
Text screen with illustrating pictures, membrane switch.
1. Adopt the text screen of LG company, with function keys around the screen.
2. Simple human-computer interface, which is easy to understand how to set the working parameters.
3. Save multiple sets of process parameters, which is easy to be recalled.
4. The membrane switch is attached to the surface of the control cabinet, and its graphical design makes it easy to be understood.
Text screen with illustrating pictures, membrane switch.
1. Adopt the text screen of LG company, with function keys around the screen.
2. Simple human-computer interface, which is easy to understand how to set the working parameters.
3. Save multiple sets of process parameters, which is easy to be recalled.
4. The membrane switch is attached to the surface of the control cabinet, and its graphical design makes it easy to be understood.

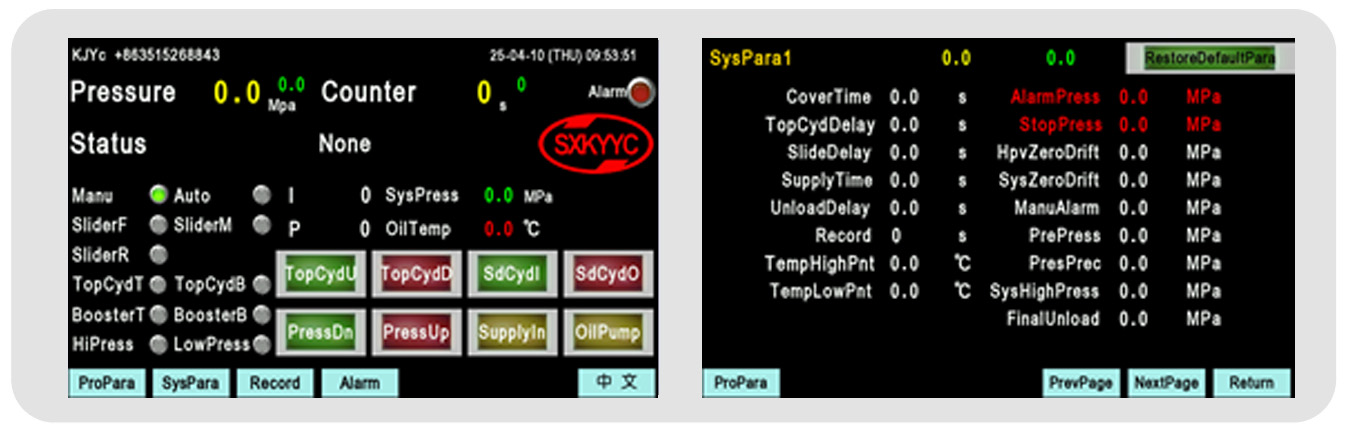

Touch screen with illustrating pictures, membrane switch.
1. Adopt the touch screen of LG company, the system will make an immediate response after your figures touch the button on the screen.
2. Friendly human-computer interface, which is easy to understand how to set the working parameters.
3. Strong data record and display functions.
4. The membrane switch is attached to the surface of the control cabinet, and its graphical design makes it easy to be understood.
Touch screen with illustrating pictures, membrane switch.
1. Adopt the touch screen of LG company, the system will make an immediate response after your figures touch the button on the screen.
2. Friendly human-computer interface, which is easy to understand how to set the working parameters.
3. Strong data record and display functions.
4. The membrane switch is attached to the surface of the control cabinet, and its graphical design makes it easy to be understood.
To ensure the safety production of the pressing machine, there are multiple security protection settings in the pressing machine.
1. Manual pressure relief valve. In case of any emergency or failure, open the valve manually to enable the pressure relief protection, and the pressure can be increased again after closing it.
2. Pressure sensor and electrical apparatus control system. When the working pressure exceeds the preset pressure value, the electrical apparatus control system will automatically stop the operation of supercharging system and operate the depressurized system to conduct the pressure relief protection.
3. The control cabinet is equipped with a shutdown button, which is used to stop the operation of the pressing machine at any working stage after pressing this button.
4. Interlock of electrical apparatus control procedures. When the pressing machine operates in strict accordance with the working procedures, if the previous procedure is not completed or with failures, the pressing machine cannot proceed to the next procedure, and will send operation failure signal. Only the failure is eliminated, can the pressing machine continue to the next procedure.
To ensure the safety production of the pressing machine, there are multiple security protection settings in the pressing machine.
1. Manual pressure relief valve. In case of any emergency or failure, open the valve manually to enable the pressure relief protection, and the pressure can be increased again after closing it.
2. Pressure sensor and electrical apparatus control system. When the working pressure exceeds the preset pressure value, the electrical apparatus control system will automatically stop the operation of supercharging system and operate the depressurized system to conduct the pressure relief protection.
3. The control cabinet is equipped with a shutdown button, which is used to stop the operation of the pressing machine at any working stage after pressing this button.
4. Interlock of electrical apparatus control procedures. When the pressing machine operates in strict accordance with the working procedures, if the previous procedure is not completed or with failures, the pressing machine cannot proceed to the next procedure, and will send operation failure signal. Only the failure is eliminated, can the pressing machine continue to the next procedure.
Model
KJYc200
KJYc250
KJYc300
KJYc350
KJYc400
KJYc450
KJYc500
KJYc550
KJYc600
KJYc700
Useful diameter of high pressure vessel(mm)
200
250
300
350
400
450
500
550
600
700
Useful depth of high pressure vessel(mm)
400～1500
300～1500
400～1500
400～1500
400～2000
500～2000
600～2500
600～2500
700～2500
800～2500
Maximum working pressure (MPa)
100～400
100～400
100～400
100～400
100～400
100～350
100～350
100～350
100～350
100～350
Installed power
9Kw
9Kw
17.5Kw
17.5Kw
17.5Kw
23.5Kw
23.5Kw
23.5Kw
23.5Kw
23.5Kw
Feeding method
Automatic material picking up to 500mm effective depth, the rest need to be equipped with material picking device

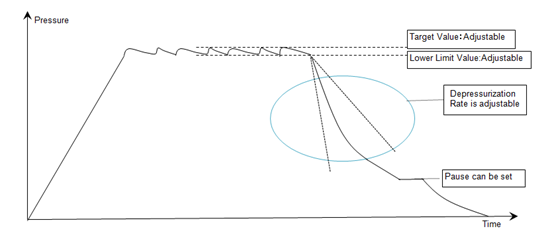

Buck-boost rate
Manual adjustment or precise setting
Working medium
Oil or water-based rust inhibitor
HMI
Text screen or touch screen
Record data export interface
None or USB
Drive method
Hydraulic drive
Cooling method
Water cooling
Model
KJYc200
KJYc250
KJYc300
KJYc350
KJYc400
KJYc450
KJYc500
KJYc550
KJYc600
KJYc700
Useful diameter of high pressure vessel(mm)
200
250
300
350
400
450
500
550
600
700
Useful depth of high pressure vessel(mm)
400～1500
300～1500
400～1500
400～1500
400～2000
500～2000
600～2500
600～2500
700～2500
800～2500
Maximum working pressure (MPa)
100～400
100～400
100～400
100～400
100～400
100～350
100～350
100～350
100～350
100～350
Installed power
9Kw
9Kw
17.5Kw
17.5Kw
17.5Kw
23.5Kw
23.5Kw
23.5Kw
23.5Kw
23.5Kw
Feeding method
Automatic material picking up to 500mm effective depth, the rest need to be equipped with material picking device
