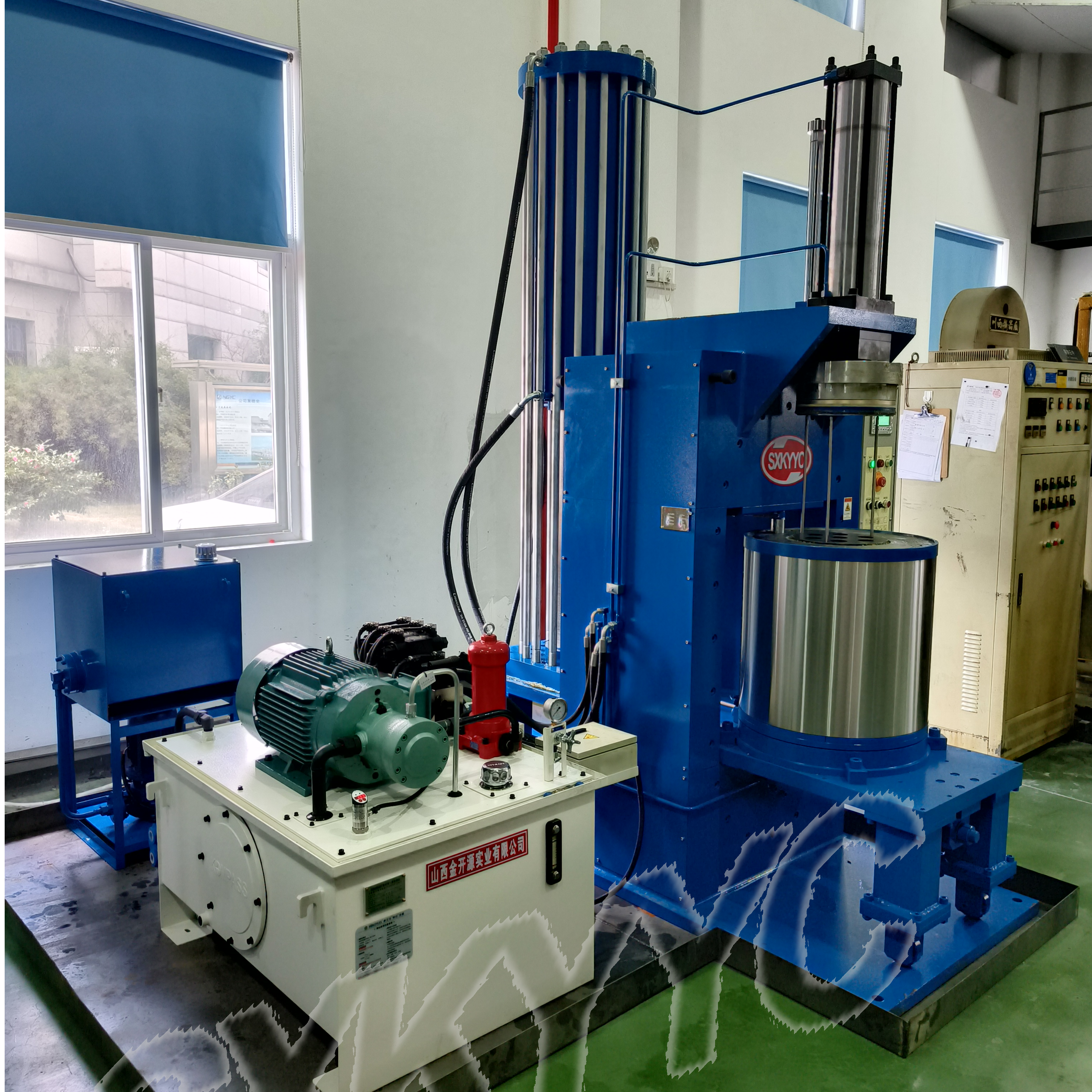

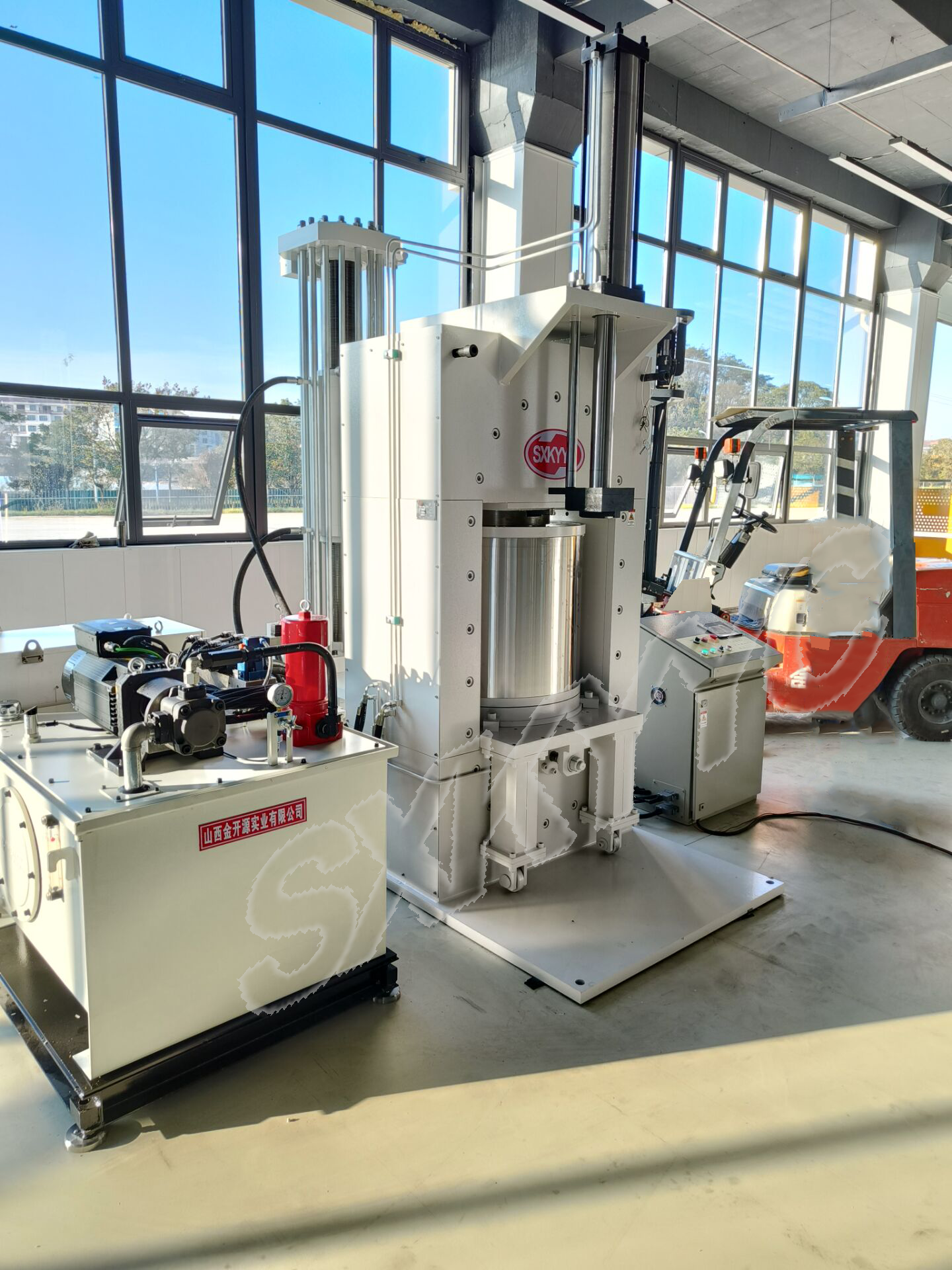

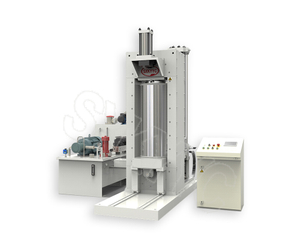

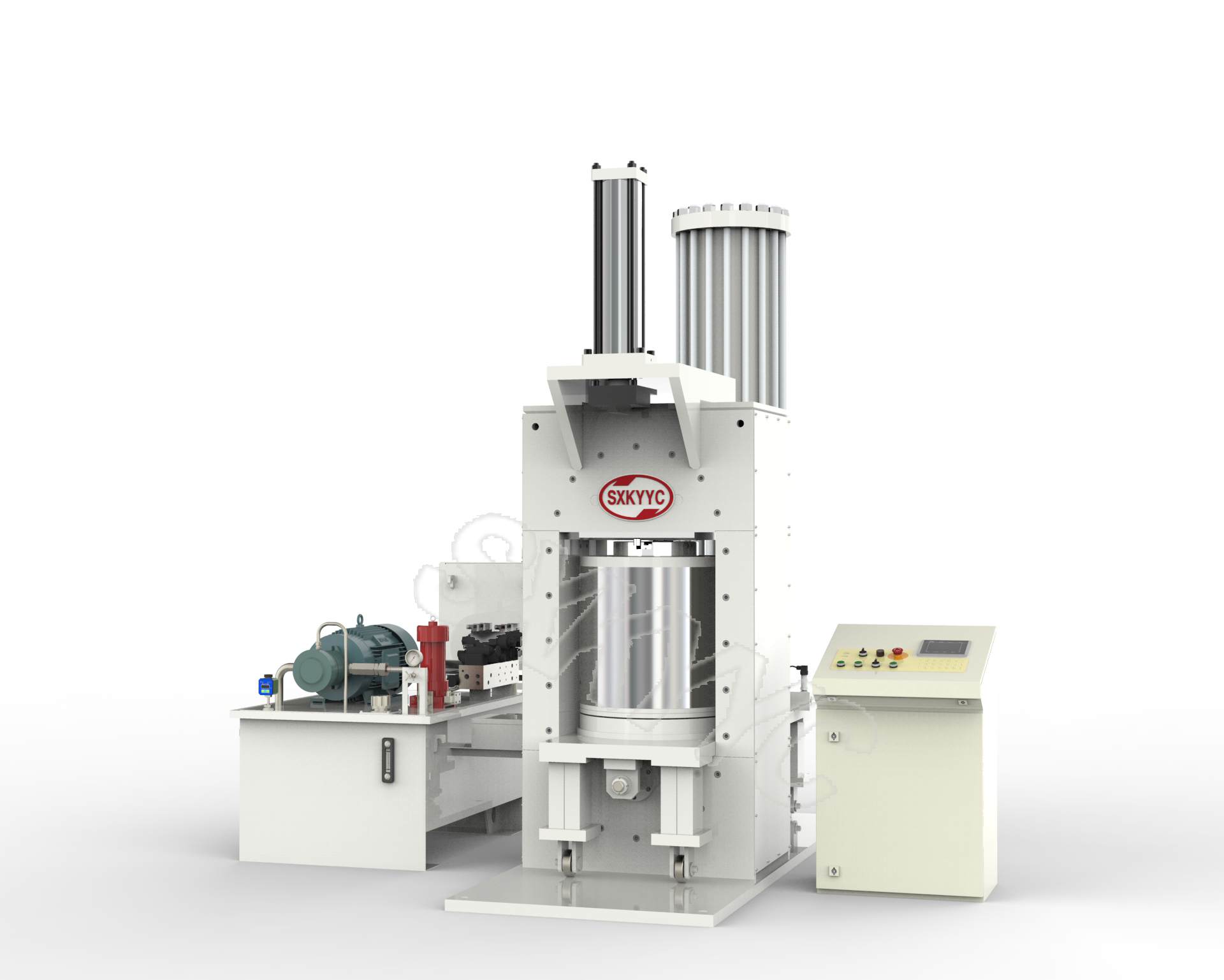

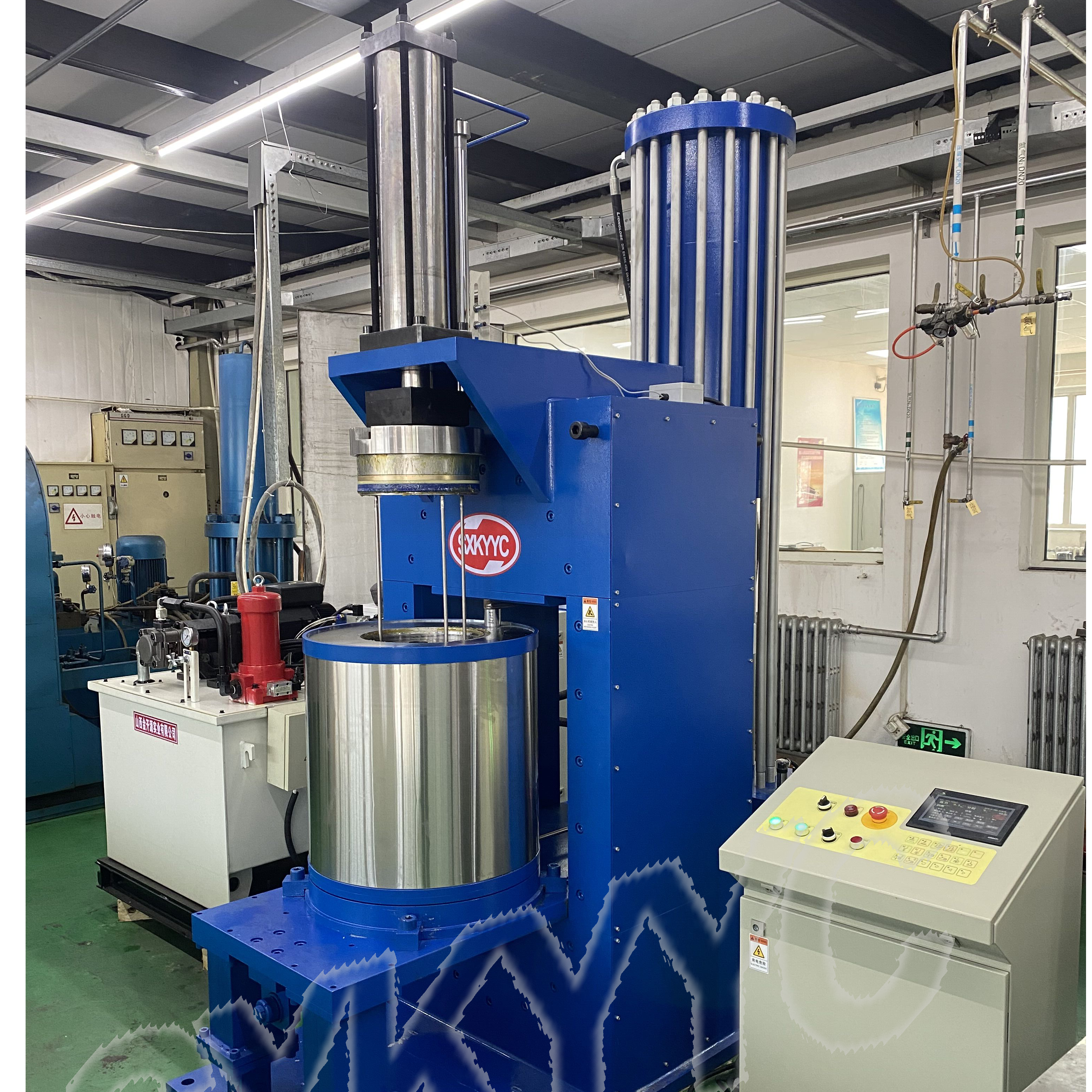

C Series Automatic Material-lifting Isostatic Press

General Control System

With picture touch screen, membrane switch.

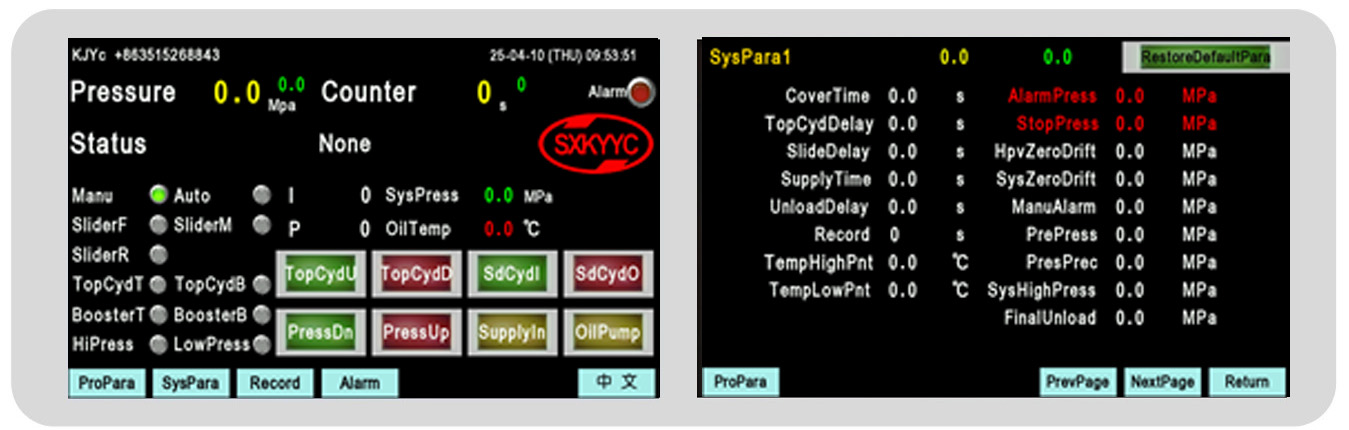

1. Using the touch screen produced by OMRON company, the system responds quickly when fingers touch the buttons on the screen.

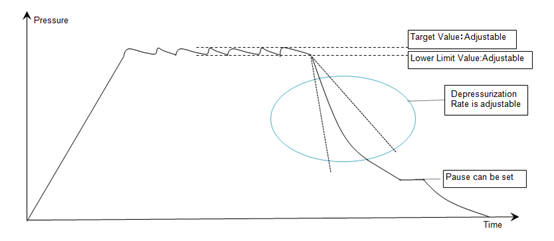

2. Friendly human-computer interface, which is easy to understand how to set the working parameters.

3. It has powerful data recording and display functions, and dynamically displays pressure change curves in real time.

4. The membrane switch is attached to the surface of the control cabinet, and its graphical design makes it easy to be understood.

Full Control System

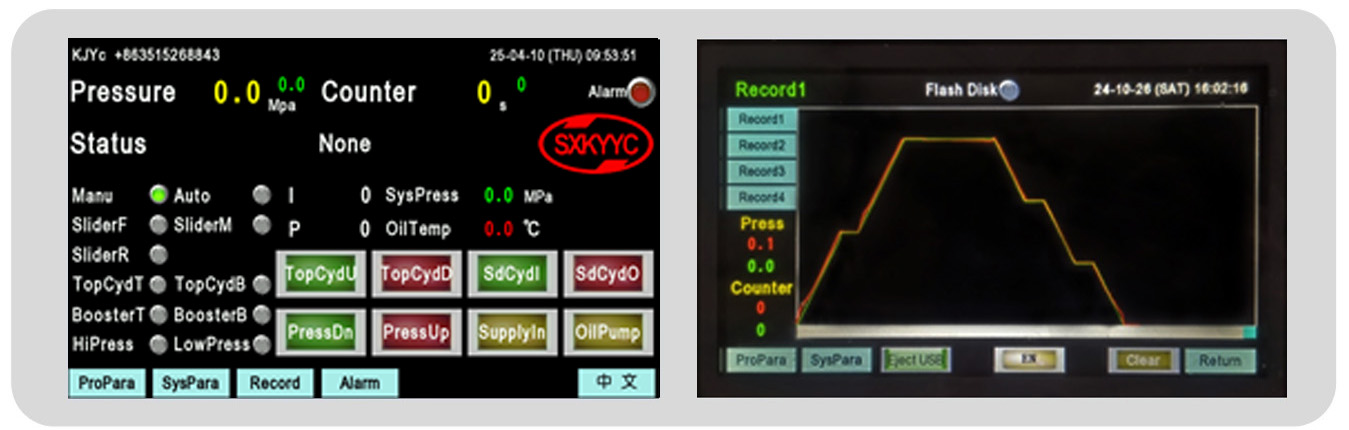

1. Using the touch screen produced by OMRON company, the system will make an immediate response after your figures touch the button on the screen.

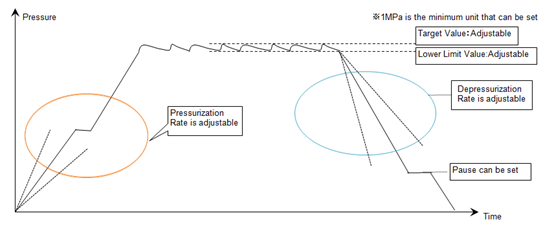

2. Friendly human-computer interface, which is easy to set the pressurization and depressurization speeds.

3. It has powerful data recording and display functions, and dynamically displays pressure change curves in real time.

4. The membrane switch is attached to the surface of the control cabinet, and its graphical design makes it easy to be understood.

To ensure the safety production of the pressing machine, there are multiple security protection settings in the pressing machine.

1. Manual pressure relief valve. In case of any emergency or failure, open the valve manually to enable the pressure relief protection, and the pressure can be increased again after closing it.

2. The hydraulic system has a preset pressure value.When the preset pressure value is exceeded, the relief valve will automatically overflow.

3. Pressure sensor and electrical apparatus control system. When the working pressure exceeds the preset pressure value, the electrical apparatus control system will automatically stop the operation ofpressurization system.

4. The control cabinet is equipped with a shutdown button, which is used to stop the operation of the pressing machine at any working stage after pressing this button.

5. Interlocking of electrical control programs. The press operates strictly according to the working procedure. If the previous procedure is not completed or a fault occurs, the next procedure cannot proceed, and an operation fault message will be issued. The next procedure can only continue after the fault is resolved.
