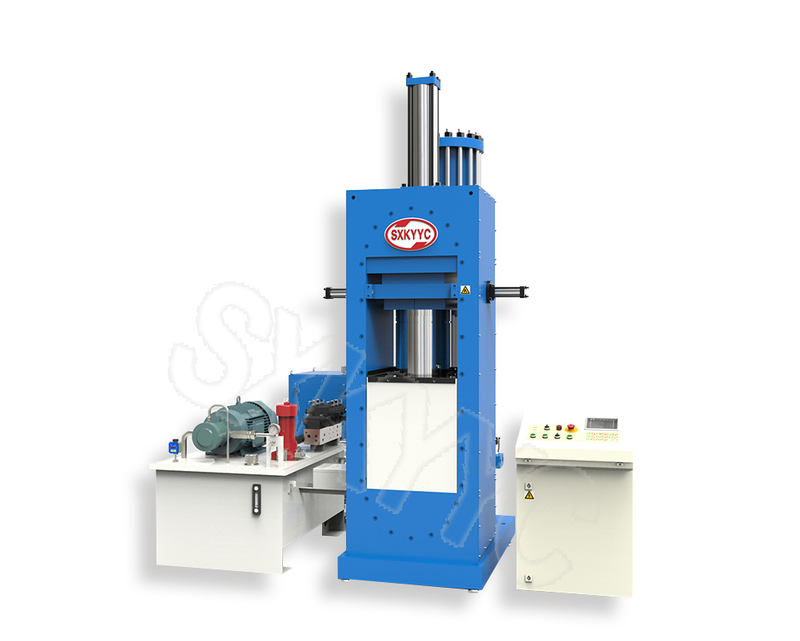

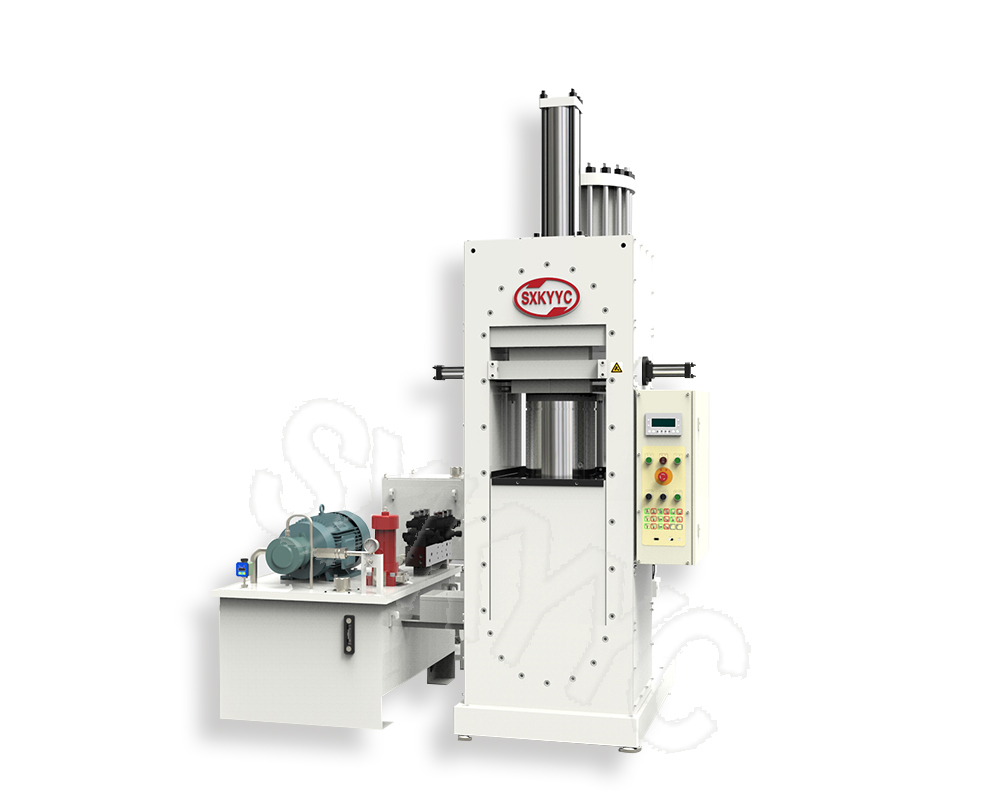

S Series
Availability: | |
---|---|
Quantity: | |
Advantages:
The equipment has a compact structure, with low mechanical failure rate.
A fastest working cycle can be finished within 3min, with high production efficiency.
The equipment covers a smaller area than other production models with the same diameter.
The equipment can achieve automatic lifting, without auxiliary lifting device.
The booster is produced by one-time pressing technology, which requires a low technical level for using personnel and maintenance personnel.
Advantages:
The equipment has a compact structure, with low mechanical failure rate.
A fastest working cycle can be finished within 3min, with high production efficiency.
The equipment covers a smaller area than other production models with the same diameter.
The equipment can achieve automatic lifting, without auxiliary lifting device.
The booster is produced by one-time pressing technology, which requires a low technical level for using personnel and maintenance personnel.

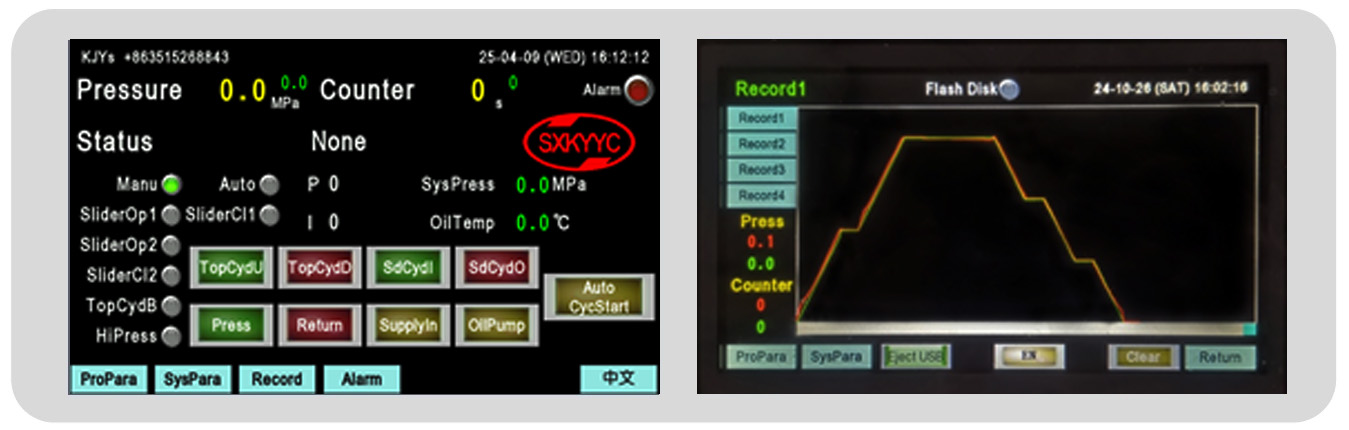

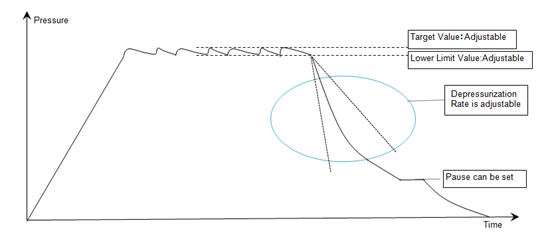

General Control System
Text screen with illustrating pictures, membrane switch.
1. Adopt the touch screen of OMRON company, the system will make an immediate response after your figures touch the button on the screen.
2. Friendly human-computer interface, which is easy to understand how to set the working parameters.
3. It has powerful data recording and display functions, and dynamically displays pressure change curves in real time
4. The membrane switch is attached to the surface of the control cabinet, and its graphical design makes it easy to be understood.

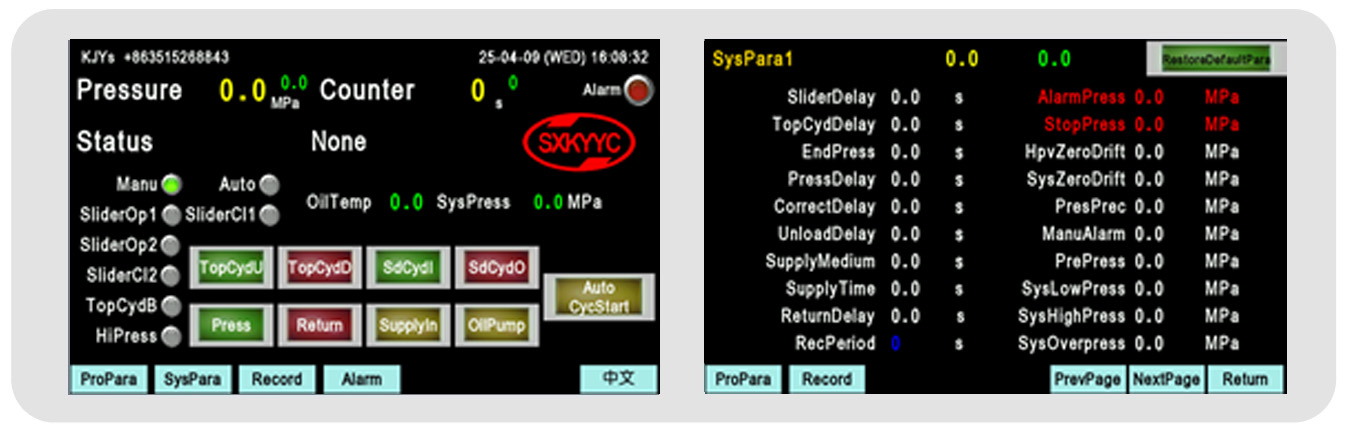

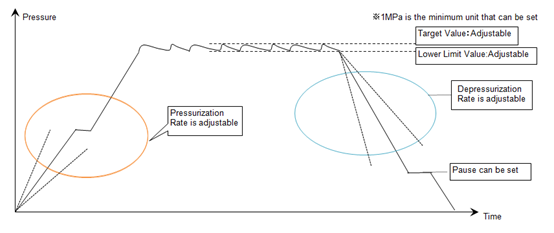

Full Control System
Touch screen with illustrating pictures, membrane switch.
1. Adopt the touch screen of OMRON company, the system will make an immediate response after your figures touch the button on the screen.
2. Friendly human-computer interface, which is easy to set the pressurization and depressurization speeds.
3. It has powerful data recording and display functions, and dynamically displays pressure change curves in real time.
4. The membrane switch is attached to the surface of the control cabinet, and its graphical design makes it easy to be understood.
General Control System
Text screen with illustrating pictures, membrane switch.
1. Adopt the touch screen of OMRON company, the system will make an immediate response after your figures touch the button on the screen.
2. Friendly human-computer interface, which is easy to understand how to set the working parameters.
3. It has powerful data recording and display functions, and dynamically displays pressure change curves in real time
4. The membrane switch is attached to the surface of the control cabinet, and its graphical design makes it easy to be understood.
Full Control System
Touch screen with illustrating pictures, membrane switch.
1. Adopt the touch screen of OMRON company, the system will make an immediate response after your figures touch the button on the screen.
2. Friendly human-computer interface, which is easy to set the pressurization and depressurization speeds.
3. It has powerful data recording and display functions, and dynamically displays pressure change curves in real time.
4. The membrane switch is attached to the surface of the control cabinet, and its graphical design makes it easy to be understood.
To ensure the safety production of the pressing machine, there are multiple security protection settings in the pressing machine.
1. Manual pressure relief valve. In case of any emergency or failure, open the valve manually to enable the pressure relief protection, and the pressure can be increased again after closing it.
2. The hydraulic system has a preset pressure value, beyond which the relief valve automatically overflows.
3.Pressure sensor and electrical apparatus control system. When the working pressure exceeds the preset pressure value, the electrical apparatus control system will automatically stop the operation of pressurization system.
4. The control cabinet is equipped with a shutdown button, which is used to stop the operation of the pressing machine at any working stage after pressing this button.
5. Interlock of electrical apparatus control procedures. When the pressing machine operates in strict accordance with the working procedures, if the previous procedure is not completed or with failures, the pressing machine cannot proceed to the next procedure, and will send operation failure signal. Only the failure is eliminated, can the pressing machine continue to the next procedure.
To ensure the safety production of the pressing machine, there are multiple security protection settings in the pressing machine.
1. Manual pressure relief valve. In case of any emergency or failure, open the valve manually to enable the pressure relief protection, and the pressure can be increased again after closing it.
2. The hydraulic system has a preset pressure value, beyond which the relief valve automatically overflows.
3.Pressure sensor and electrical apparatus control system. When the working pressure exceeds the preset pressure value, the electrical apparatus control system will automatically stop the operation of pressurization system.
4. The control cabinet is equipped with a shutdown button, which is used to stop the operation of the pressing machine at any working stage after pressing this button.
5. Interlock of electrical apparatus control procedures. When the pressing machine operates in strict accordance with the working procedures, if the previous procedure is not completed or with failures, the pressing machine cannot proceed to the next procedure, and will send operation failure signal. Only the failure is eliminated, can the pressing machine continue to the next procedure.
Model | KJYs150 | KJYs200 | KJYs250 | KJYs300 |
Useful diameter of High-pressure vessel(mm) | 150 | 200 | 250 | 300 |
Useful depth of High-pressure vessel(mm) | 300 | 300 | 300 | 400/450 |
Maximum working pressure (MPa) | 30~400 | 30~400 | 30~400 | 30~300 |
Installed power | 9Kw | 9Kw | 17.5Kw | 17.5Kw |
Feeding method | Automatic picking | |||
Buck-boost rate | Manual adjustment or precise setting | |||
Working medium | Oil or Water-based antirust agent | |||
HMI | Full color touch screen | |||
Record data export interface | USB | |||
Drive method | Hydraulic drive | |||
Cooling method | Water cooling |
Model | KJYs150 | KJYs200 | KJYs250 | KJYs300 |
Useful diameter of High-pressure vessel(mm) | 150 | 200 | 250 | 300 |
Useful depth of High-pressure vessel(mm) | 300 | 300 | 300 | 400/450 |
Maximum working pressure (MPa) | 30~400 | 30~400 | 30~400 | 30~300 |
Installed power | 9Kw | 9Kw | 17.5Kw | 17.5Kw |
Feeding method | Automatic picking | |||
Buck-boost rate | Manual adjustment or precise setting | |||
Working medium | Oil or Water-based antirust agent | |||
HMI | Full color touch screen | |||
Record data export interface | USB | |||
Drive method | Hydraulic drive | |||
Cooling method | Water cooling |
