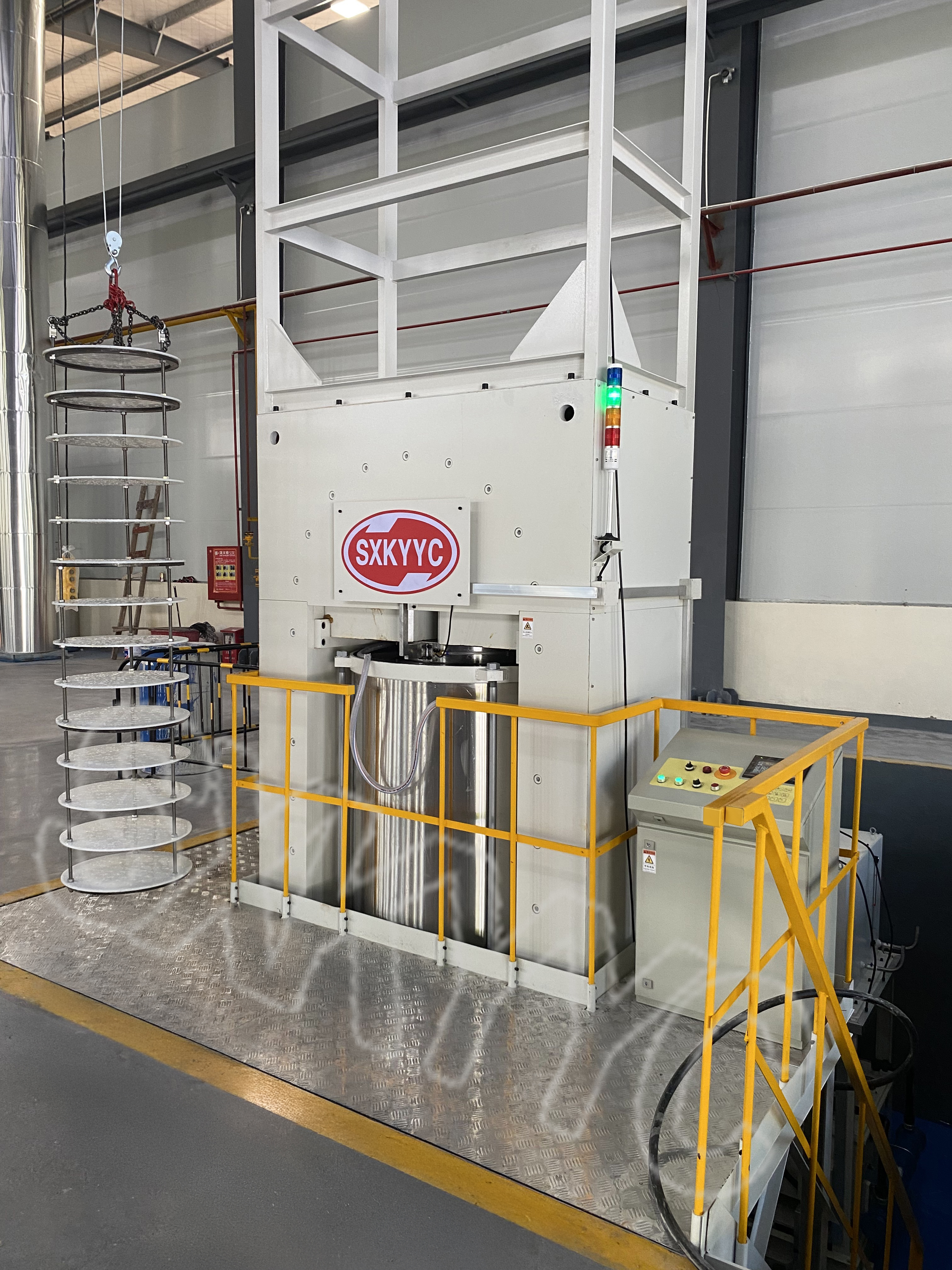

M Series Large & Medium-Sized Isostatic Press

M series cold isostatic press is a kind of large and medium sized cold isostatic press with perfect functions and beautiful appearance.
  • M Series
Availability:
Quantity:

Advantages:

The diameter of working cavity can reach 850mm.

It can automatically check whether the working cavity is filled with operating fluid instead of controlling fluid infusion process by preset fluid infusion time.

When closing the lid or infusing operating fluid, the working cavity can exhaust air smoothly, thus effectively reducing the time extension due to the too much air in high-pressure cavity.

The operating fluid overflowed from the working cavity will be automatically collected, and then be flowed to fluid infusion tank, thus reducing waste and protecting environment.

Thoughtful multiple operating fluid filter system, greatly ensuring the reliability service of the equipment.

The booster controls the direction change of internal plunger by the contactless position sensor to make the direction change of plunger more quiet and pressure rise smoother.

After several deliberations, the pipeline is exquisitely designed and properly arranged to minimize the flexible pipe movement, which makes the equipment tidier in appearance, meeting the modern industrial design concept.


Safety Guarantee

To ensure the safety production of the pressing machine, there are multiple security protection settings in the pressing machine.

1. Manual pressure relief valve. In case of any emergency or failure, open the valve manually to enable the pressure relief protection, and the pressure can be increased again after closing it.

2. Pressure sensor and electrical apparatus control system. When the working pressure exceeds the preset pressure value, the electrical apparatus control system will automatically stop the operation of supercharging system and operate the depressurized system to conduct the pressure relief protection.

3. The control cabinet is equipped with a shutdown button, which is used to stop the operation of the pressing machine at any working stage after pressing this button.

4. Interlock of electrical apparatus control procedures. When the pressing machine operates in strict accordance with the working procedures, if the previous procedure is not completed or with failures, the pressing machine cannot proceed to the next procedure, and will send operation failure signal. Only the failure is eliminated, can the pressing machine continue to the next procedure.

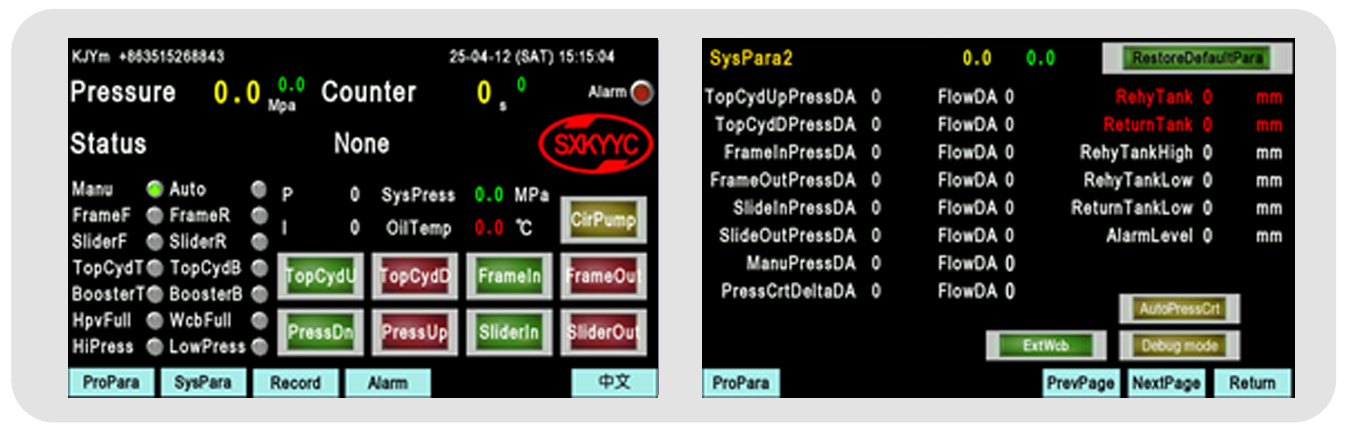

Touch screen with illustrating pictures, membrane switch.

1) Adopt the touch screen of LG company, the system will make an immediate response after your figures touch the button on the screen.

2) Friendly human-computer interface, which is easy to understand how to set the working parameters.

3) Strong data record and display functions.

4) The membrane switch is attached to the surface of the control cabinet, and its graphical design makes it easy to be understood.

Installation method.pdf


Ground installation form:

Easy installation; maintenance space is not limited; original plant structure is not changed; suitable for the equipment with the total height less than 4m.



Pit installation form:

The operation surface is parallel and level to the ground; convenient and fast operation; plant height is not occupied; pit construction should be done in advance.


M Structure.pdf


1. Basic configuration:

The basic configuration of the equipment includes the following parts:

Main body

Booster station

Cooling system

Operating platform

Control system


2. Host

ModelKJYm450KJYm500KJYm550KJYm600KJYm650KJYm700KJYm750KJYm800KJYm850KJYm900
Useful diameter of high pressure vessel(mm)450500550600650700750800850900
Useful depth of high pressure vessel(mm)500~2500600~2500600~2500800~2500700~2500800~2500800~2500900~25001000~25001000~2500
Maximum working pressure (MPa)100~350100~350100~350100~350100~350100~350100~300100~300100~300100~300
Installed power23.523.523.523.5505050505050
Feeding methodNeed to configure the lifting device

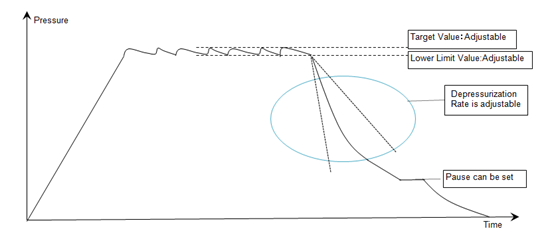

Buck-boost rateAdjustable
Working mediumOil or water plus anti-rust agent
HMIFull color touch screen
Record data export interfaceUSB interface
Drive methodHydraulic drive
cooling methodWater cooling
