Dry-Bag Isostatic Press

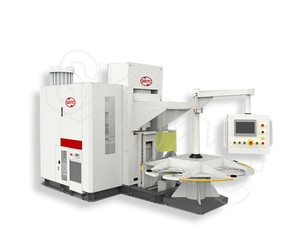

G series dry-bag isostatic press is the large and medium-sized dry isostatic press specially developed to press products with large ratio of length to diameter.
  • G series 150mm above
Availability:
Quantity:

Advantages:

  • This series equipment is suitable for pressing small products, rodlike or tube-shaped products.

  • Material charging modes include charging outside the equipment and charging in the equipment. Demoulding modes also include automatic demoulding and automatic demoulding + artificial demoulding. The equipment of this series can be linked to constitute automatic forming production line, or to form a complete set of molding equipment with the supporting charging machine, fettling machine, cutting machine and powder recovery device.

  • The working liquid in the high-pressure cavity is always in the airtight state in the whole working cycle, which completely eradicates the possibility of powder entering working medium in the high-pressure cavity and improves equipment reliability. The working medium will not be brought out of the equipment, so the loss is zero, which guarantees cleanness of working environment.

  • The whole machine adopts servo hydraulic system, the working process is ultra-silent, so the labor environment is optimized.


Main structure.pdf

1. Prestressed steel wire winding main body

The main body of the equipment is composed of high-pressure cavity assembly, yoke frame assembly, relevant fittings and pipeline, and acts as the main functional area for pressing workpieces.

The right figure shows the internal structure of the main body after disassembling the outer decorating plate. The main body of the equipment adopts the mechanical design same as that of the main body of wet-bag isostatic press, namely, all pressure-bearing components are completely covered by the prestressed steel wire winding structure, which is currently recognized as the safest and most reliable structure.

Such structural advantage makes the equipment of this series can meet the customized demand for larger size of products. Useful diameter is 200-400mm, maximum useful length is 1500mm.


2. Charging and discharging

The equipment of this series adopts the way of charging in the equipment. The charging inlet is above the opening of the high-pressure cavity, and the charging should be manually operated by operators.

To make the powder load evenly, the equipment is of charging compaction function.

After charging the powder, manually insert the mould plug and then start the automatic cycle.


3. Pressurization system

The equipment is supplied with low pressure and provides the required pressure for high-pressure cavity after increasing the pressure by the booster. The pressure inside the pressure cylinder is equal to that of the high-pressure cavity, with the prestressed steel wire winding structure same as that of the high-pressure cavity, to ensure the safety and reliability.


ModelKJYge200KJYge250KJYgeX(X<400)

Useful diameter of high pressure vessel(mm)

200250X<400
Useful depth of high pressure vessel(mm)500~1500500~1500500~1500
Maximum working pressure (MPa)100/150/200100/150/200100/150/200
Single working cycle time4min
Installed power (Kw)20~50
Loading methodInternal loading/external loading
Buck-boost rateCan be set
Working mediumOil or water plus rust inhibitor
HMIFull color touch screen
Record data export interfaceUSB interface
Drive methodHydraulic drive
Cooling methodOil cooler forced cooling
